How to Write and Export an Arduino File from an EEZ Studio Project: Easy Step-by-Step Instructions

Want to use EEZ Studio and Arduino together? You're in the right place! Working with hardware and code can seem tricky. But don't worry—we're here to make it easy and fun.

Let’s say you built something awesome in EEZ Studio. Now you want to run it on your Arduino. That means you need to write and export a file that your Arduino can understand.

Sounds like magic? It kind of is. But it’s the type of magic you can do in just a few simple steps.

What You’ll Need

• EEZ Studio installed
• An Arduino board (Uno, Mega, etc.)
• Arduino IDE installed
• A USB cable for uploading

Step 1: Create Your Project in EEZ Studio

Open EEZ Studio. Click on File > New Project. Give your project a cool name. Something like SuperSensorBot.

Select a location to save your project. Then hit OK. Boom! You’ve just started building your master creation.

Step 2: Add a Control Script

In the sidebar, find the section called Scripts. Right-click on it and select New Script. Name it something simple like MainControl.

Now write the actions you want your Arduino to perform. Here’s a tiny example:

void setup() {
  pinMode(13, OUTPUT);
}

void loop() {
  digitalWrite(13, HIGH);
  delay(500);
  digitalWrite(13, LOW);
  delay(500);
}

Yup, it just blinks an LED. But hey, it’s a classic for a reason!

Step 3: Check Your Code

EEZ Studio helps keep your code clean. Use the built-in validator by clicking the Checkmark icon. It will scan your script and let you know if anything is wrong.

If it says All Good (or something like that), you’re ready for the next step.

Step 4: Generate the Arduino File

Right-click your script and choose Export to Arduino. You’ll be asked to choose a file format. Select .ino (Arduino Sketch).

Pick a location on your computer to save the exported file. We suggest putting it in your Arduino > Projects folder for easy access.

Hit Save. Ta-da! Your script is now in Arduino format. It’s like giving your Arduino a fresh set of instructions.

Step 5: Open Your File in the Arduino IDE

Open the Arduino IDE. Click on File > Open. Navigate to your .ino file, then click Open.

You’ll see the same code you wrote in EEZ Studio. It’s all there, ready to go.

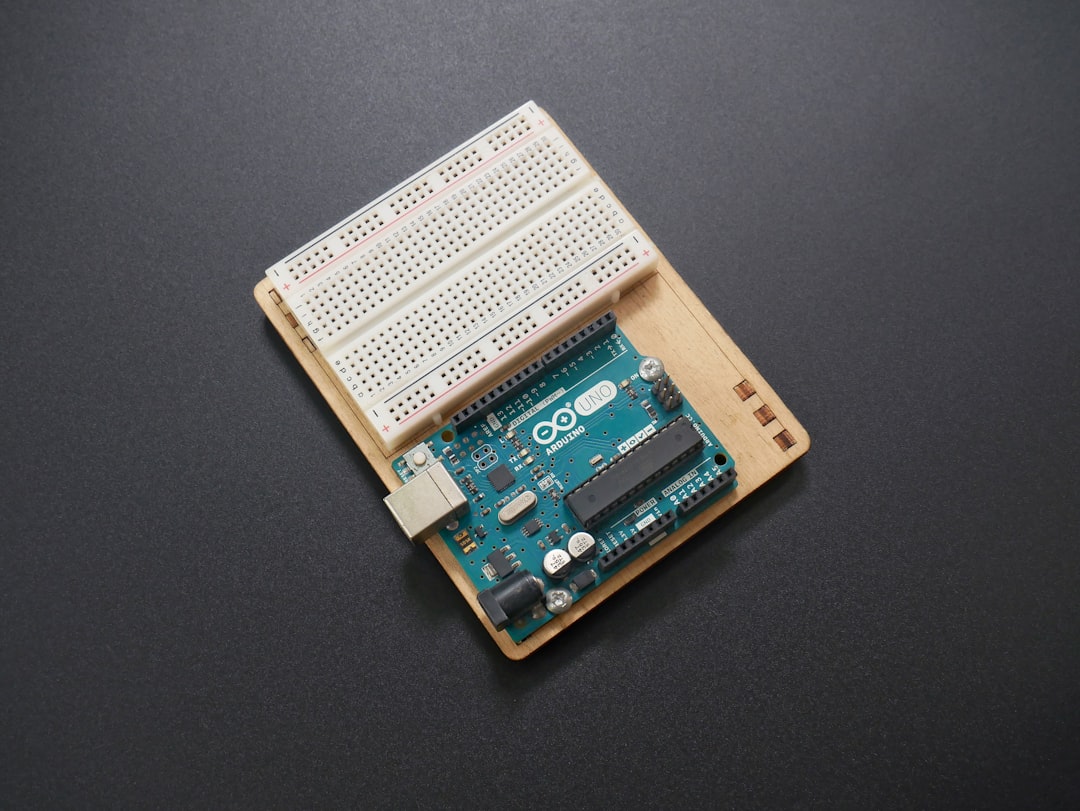

Step 6: Connect Your Arduino

Plug in your Arduino board using a USB cable. The IDE should detect your board. Make sure it’s the correct one by going to:

• Tools > Board and selecting the right model (Uno, Mega, etc.)
• Tools > Port and picking the currently active COM port

If in doubt, disconnect and reconnect your board. The port will pop up again and help you know which one to pick.

Step 7: Upload the Code

Click the Upload arrow in the top-left corner of the Arduino IDE.

Wait for a few seconds. If everything goes well, you’ll see “Upload Complete” at the bottom of the screen.

Now look at your Arduino board. See that LED blinking? That’s not just a light—it's a victory dance. You just turned your EEZ Studio project into real-world action!

Troubleshooting Tips

• Nothing happens? Check your COM port and board type.
• Error messages? Make sure you copied your code correctly.
• LED not blinking? Make sure it's connected to the right pin (usually pin 13).

Bonus: Add More Devices

Now that you’ve got the basics down, why not take it further?

• Add a temperature sensor to monitor the room
• Hook up a buzzer for alerts
• Use an LCD to show messages

Each of these devices can be added into your EEZ Studio script. Then export like before. It’s a rinse-and-repeat magic show!

Why Use EEZ Studio?

EEZ Studio makes visual coding easier. You can organize project files, control UI flow, and write Arduino-compatible scripts all in one place.

It’s like giving your Arduino a high-tech command center. And hey, you don’t have to memorize weird syntax—just write, export, and go!

Final Thoughts

Combining EEZ Studio and Arduino is a smart choice. It's powerful, creative, and surprisingly simple once you know the steps.

Here's a quick recap one more time:

1. Create a project in EEZ Studio
2. Write your script
3. Validate and export as a .ino file
4. Open it in the Arduino IDE
5. Plug in your Arduino and upload

Want to build a robot? Automate your lights? Make a dancing weather station?

You can. And it starts with a few simple clicks and a blinking LED. ✨

Happy coding!
